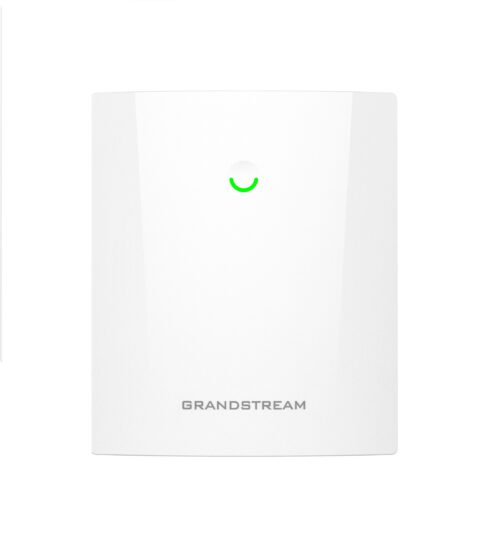

Grandstream GWN7660ELR Outdoor AX3000 Wi-Fi 6 Dual-band 2×2:2 MU-MIMO with XTRA Range Technology Access Point, POE

Περιγραφή

The GWN7660ELR is an enterprise-grade long range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It supports weatherproof casing and heat resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology and a sophisticated antenna design for maximum network throughput that supports 256 clients and an expanded 300-meter coverage range. It also provides IP67 weatherproof and dust-proof ability, as well as -30 to 60°C operating temperature, this ensures that the Wi-Fi 6 access point can operate properly in difficult weather conditions.To ensure easy installation and management, the GWN7660ELR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7660ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, Bluetooth® Low Energy (BLE) 5.2, a gigabit Ethernet port with PoE/PoE+ and a 2.5 Gigabit SFP port with PoE/PoE+. The GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools, and more.

Key Features & Benefits:

Dual-band 2×2:2 MU- MIMO with XTRA Range technology
Flexibility of 5 internal antennas
3Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
Up to 300-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Self power adaptation upon auto detection of PoE/PoE+
IP67-level weatherproof capability
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data
Control lockdown via digital signatures, unique security certificate
Random default password per device
Embedded controller can manage up to 50 local GWN series APs
GWN.Cloud offers unlimited AP management
GWN Manager offers premise-based software controller
3 Year Warranty

Specifications:

Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
Antennas:
– 5 individual internal antennas
– 2.4GHz x 2 , gain 5.5 dBi
– 5 GHz x 2, gain 6.0 dBi
Wi-Fi Data Rates:
5G:
– IEEE 802.11ax: 7.3 Mbps to 2403 Mbps
– IEEE 802.11ac: 6.5 Mbps to 1734 Mbps
– IEEE 802.11n: 6.5 Mbps to 300 Mbps
– IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
– IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps
– IEEE 802.11n: 6.5 Mbps to 300 Mbps
– IEEE 802.11b: 1, 2, 5.5, 11 Mbps
– IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Frequency Bands:
– 2.4GHz radio: 2412 – 2484 MHz
– 5GHz radio: 5180 – 5825 MHz
Channel Bandwidth:
– 2.4G: 20 and 40 MHz
– 5G: 20, 40, 80 and 160 MHz
Wi-Fi and System Security:
– WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
– WPA3, anti-hacking secure boot and critical data
– Control lockdown via digital signatures, unique security certificate
– Random default password per device
MU-MIMO: 2×2:2 2.4GHz, 2×2:2 5GHz
Coverage Range: Up to 300 meters
Maximum TX Power:
– 5G: 26dBm
– 2.4G: 27dBm
Receiver Sensitivity:
2.4G:
– 802.11b: -96dBm @1Mbps, -88dBm @11Mbps;
– 802.11g: -93dBm @6Mbps, -75dBm @54Mbps;
– 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7;
– 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11
5G:
– 802.11a: -90dBm @6Mbps, -72dBm @54Mbps;
– 802.11n: 20MHz: -71dBm @MCS7; 802.11n 40MHz: -68dBm @MCS7
– 802.11ac 20MHz: -65dBm @MCS8; 802.11ac: 40MHz: -61dBm @MCS9; 802.11ac 80MHz: -57dBm @MCS9;
– 802.11ac 160MHz: -55dBm @MCS9;
– 802.11ax 20MHz: -58dBm @MCS11; 802.11ax 40MHz: -56dBm @MCS11; 802.11ax 80MHz: -54dBm @MCS11;
– 802.11ax 160MHz: -51dBm @MCS11;
SSIDs: 32 SSIDs total, 16 per radio (2.4GHz and 5GHz)
Concurrent Clients: 256
Network Interfaces: 1x 1G Port and 1x 2.5G SFP Port
Bluetooth®: BLE 5.2
Auxiliary Ports: 1x Reset Pinhole, 1x Kensington lock
Mounting: Wall mount or pole mount, kits included
LEDs: 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP
Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS: 802.11e/WMM, VLAN, TOS
Network Management:
– Embedded controller can manage up to 50 local GWN APs
– GWN.Cloud offers a free cloud management platform for unlimited GWN APs
– GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency:
– PoE 802.3af/802.3at;
– Maximum Power Consumption: 13W
Environmental:
– Operation:-30°Cto 60°C
– Storage: -30°C to 70°C
– Humidity: 5% to 95% Non-condensing
– Weatherproof Grade: IP67-level weatherproof capability when installed vertically
Physical:
– Unit Dimensions: 270mm x 230mm x 57mm
– Unit Weight: 1Kg
– Entire Package Dimensions: 439mm x 329mm x 137mm
– Entire Package Weight: 2.4Kg
Package Content:
– GWN7660ELR Outdoor Wireless AP
– Mounting Kits
– Quick Start Guide
Compliance: FCC, CE, RCM, IC
