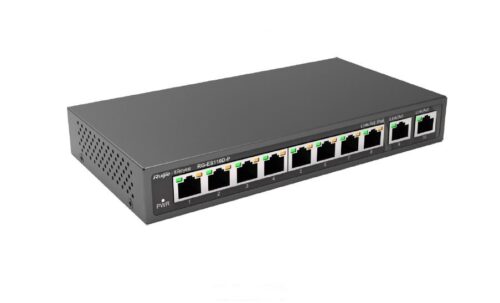

Ruijie-Reyee RG-ES110D-P 8-Port 100Mbps + 2 Uplink 1000Mbps Ports Unmanaged PoE/PoE+ Switch

Περιγραφή

The Ruijie-Reyee RG-ES110D-P is an 8-Port Unmanaged PoE Switch that offers 8x 10/100Mbps Downlink Ports with PoE/PoE+ power supply, 2x 1000Mbps Uplink Ports and 110W Max PoE power budget. Video surveillance has been widely popularized, and more and higher requirements are raised for surveillance security switches that are indispensable for video data transmission. Ruijie-Reyee launches the RG-ES100 Series of Unmanaged Switches to provide customers with next-generation unmanaged surveillance security switches that feature diversified specifications, stable quality, and high-cost performance. The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches helping customers cope with the stringent requirements of different projects. Key Features of the Ruijie-Reyee RG-ES110D-P 8-Port Unmanaged PoE Switch: 8 x 10/100BASE-TX Downlink Ports with PoE/PoE+ support 2 x 10/100/1000BASE-TX Uplink Ports Max. PoE budget: 110W Layer Type: Unmanaged Switching capacity 5.6 Gbps Forwarding rate 4.17 Mpps MAC address table 2000 Auto/Full/Half Duplex Negotiation Auto MDI/MDIX Switching model: Store-and-forward Cloud Management: Cloud monitoring Flow Control, Port Isolation Power Consumption <129W Surge Protection 6kV Fanless operation Power Supply 53V DC – 2.24A Operating Temperature 0°C to 45°C Storage Temperature -40°C to 70°C Operating Humidity 10% RH to 90% RH Storage Humidity 5% RH to 95% RH Dimensions (WxDxH) 190×100×28mm Weight (With package) 1.3kg 3 Year Warranty ​ Ruijie Reyee RG-ES100 Series Unmanaged Switches Datasheet Benefits of the RG-ES100 Series: The Plug and Play (PnP) feature allows you to set up a video surveillance transmission network by only powering on the RG-ES100 Series switches and correctly connecting the switches to IP cameras and digital video recorders (DVRs). Easy Addition to Topology. If the Ruijie Cloud management platform is available, you can add the RG-ES100 Series to the topology manually or by scanning the QR code to conveniently output a complete topology. High Selection Standards for Excellent Quality and Stability. The RG-ES100 Series is composed of key components selected based on strict requirements, such as the power supply, capacitors, and resistors. In addition, specifications related to lightning protection of the power supply, surge protection of ports, and lifespans of capacitors and resistors are strictly controlled and tested to provide reliable and easy-to-use products for customers. Large Cache for Smooth HD Videos. Based on characteristics of video transmission, the RG-ES100 Series employs a large cache to properly handle traffic bursts in video surveillance and avoid video freezing. The RG-ES100 Series unmanaged switches support switching among the flow control, port isolation, and normal modes, and support smart PoE and PoE+. The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches helping customers cope with the stringent requirements of different projects. Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments. Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments.
