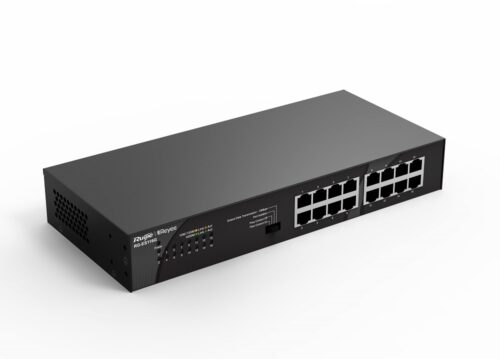

Ruijie-Reyee RG-ES116G 16-Port Gigabit Unmanaged Switch

Περιγραφή

The Ruijie-Reyee RG-ES116G is a 16-Port Unmanaged non-PoE Switch that offers 16x 10/100/1000Mbps Downlink Ports. Video surveillance has been widely popularized, and more and higher requirements are raised for surveillance security switches that are indispensable for video data transmission. Ruijie-Reyee launches the RG-ES100 Series of Unmanaged Switches to provide customers with next-generation unmanaged surveillance security switches that feature diversified specifications, stable quality, and high-cost performance. The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches helping customers cope with the stringent requirements of different projects. Key Features of the Ruijie-Reyee RG-ES116G 16-Port Gigabit Unmanaged Switch: 16x 10/100/1000BASE-T Downlink Ports Layer Type: Unmanaged Switching capacity 32 Gbps Forwarding rate 23.81 Mpps MAC address table 8000 Auto/Full/Half Duplex Negotiation Auto MDI/MDIX Switching model: Store-and-forward Cloud Management: Cloud monitoring Flow Control, Port Isolation Power Consumption ≤ 11W Surge Protection 6kV Fanless operation Power Supply 100V AC to 240V AC, 0.5A Operating Temperature 0°C to 45°C Storage Temperature -40°C to 70°C Operating Humidity 10% RH to 90% RH Storage Humidity 5% RH to 95% RH Dimensions (WxDxH) 280x126x44mm Weight (With package) 1.75kg 3 Year Warranty -Ruijie Reyee RG-ES100 Series Unmanaged Switches Datasheet Benefits of the RG-ES100 Series: The Plug and Play (PnP) feature allows you to set up a video surveillance transmission network by only powering on the RG-ES100 Series switches and correctly connecting the switches to IP cameras and digital video recorders (DVRs). Easy Addition to Topology. If the Ruijie Cloud management platform is available, you can add the RG-ES100 Series to the topology manually or by scanning the QR code to conveniently output a complete topology. High Selection Standards for Excellent Quality and Stability. The RG-ES100 Series is composed of key components selected based on strict requirements, such as the power supply, capacitors, and resistors. In addition, specifications related to lightning protection of the power supply, surge protection of ports, and lifespans of capacitors and resistors are strictly controlled and tested to provide reliable and easy-to-use products for customers. Large Cache for Smooth HD Videos. Based on characteristics of video transmission, the RG-ES100 Series employs a large cache to properly handle traffic bursts in video surveillance and avoid video freezing. The RG-ES100 Series unmanaged switches support switching among the flow control, port isolation, and normal modes, and support smart PoE and PoE+. The RG-ES100 Series supports diversified product forms like desktop or rack-mounting installation and 6 to 26 port PoE/non-PoE switches helping customers cope with the stringent requirements of different projects. Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments. Wide Application Scenarios. The RG-ES100 Series can be used to access the networks, cameras, and video intercom systems in campuses, equipment rooms, factories, office buildings, residential areas, parking lots, and other video surveillance environments.
