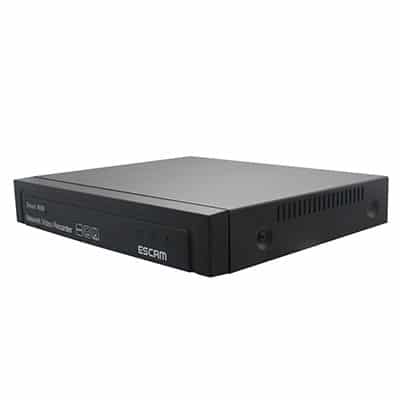

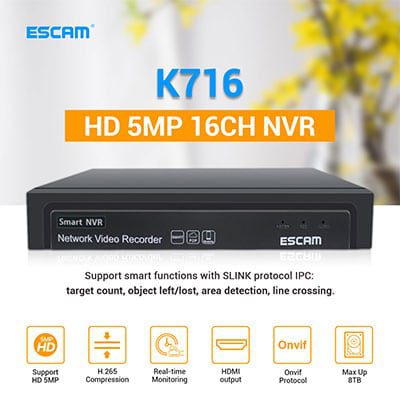

ESCAM K716 NVR καταγραφικό 5MP


EAN: 2000000230238Availability: Σε απόθεμα Κωδικός προϊόντος: 23023 Κατηγορία:


Model NumberK716
Operating SystemEmbedded LINUX operating system
Video Standard H.265+/ H.265/H.264
Smart AnalysisWith Smart IPC,suppoatTarget Count, Object Left /Lost, Area Detection, Line Crossing
Video & Audio InputVideo Input16CH 5MP IP Network Cameras
Audio Input IPC composite stream network audio input
Video & Audio OutputHDMI Output1CH, HDMI can output audio at the same time
VGA Output 1CH
Preview Split 1/4/9 screen
Video & Audio CodecVideo Resolution5MP and below resolution
Synchronized PlaybackSupport adaptive stream preview and playback:9 screens D1, 4 screens 1280*720, single screen 2560*1920

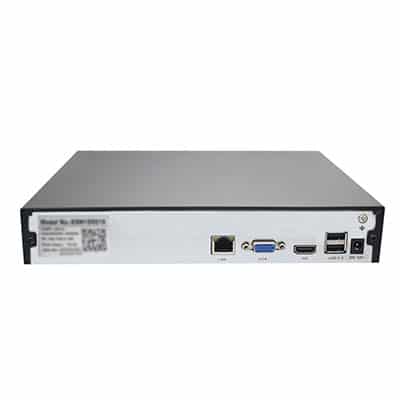

Internet 1 x RJ45 10M/100M adaptive Ethernet port
USB2 x USB2.0 rear
HDD HDD Port 1 x SATA HDD Port
MAX Capacity  up to 8TB
POE interface/
Support Standard/
Network ManagementNetwork ProtocolUPnP (Plug & Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)
Remote Monitoring
AEeyeSupports iPhone, iPad, Android Smart phone
Supports Windows 7 and above computer client, supports Apple MAC computer client
Power Supply12V 2A
Working Temperature  -10℃–+55℃
Working Humidity  10%-90%
Power ConsumptionNVR motherboard function≤25W(Without HDD)
Dimensions  Device:255mm×220mm×43mm,
Weight (Without HDD) N.W.:0.63Kg;Packing:1.1Kg
Outside Carton  10 pcs/carton.Dimension:462mm×365mm×530mm;Weight:12Kg
Installation Method Desktop installation

Επιπλέον πληροφορίες

Βάρος500 g
