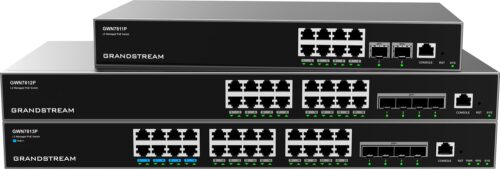

Grandstream GWN7811P 8-Port Enterprise Layer 3 Managed PoE Switch with 2x 10G SFP+ Uplink Ports


Availability: Σε απόθεμα Κωδικός προϊόντος: GSTR-0276 Κατηγορίες: ,


The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses.

Key Features & Benefits of the GWN7811P 8-Port Enterprise L3 Managed PoE Switch with 2x 10G SFP+ Uplink Ports:

8x Gigabit Ethernet Ports with IEEE 802.3af/at PoE support
Dynamic PoE/PoE+ power allocation per port
Max Output Power per PoE Port: 30W
Max PoE Power Budjet: 120W
2x 10Gigabit SFP+ Ports
1x Console Port
1x Reset Pinhole
Link Aggregation: 5
Forwarding Mode: Store-and-forward
Total non-blocking throughput: 28Gbps
Switching Capability: 56Gbps
Forwarding Rate: 41.644Mpps
– 16K static, dynamic and filtering MAC addresses
– 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
– VLAN virtual interface
– GVRP (pending)
– Spanning tree, 32 instances for STP/RSTP/MSTP
– Static routing
– Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
– Policy routing (pending)
– IGMP Snooping
– MLD Snooping
– MVR (pending)
– Port priority
– Priority mapping
– Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
– Traffic shaping
– Rate limit
– 2K ACL for Ethernet, IPv4 and IPv6
– DHCP server
– DHCP relay
– DHCP Option 82, 60, 160 and 43
– CPU and memory monitoring
– SNMP, RMON, LLDP&LLDP-MED, backup and restore
– Syslog, diagnostics including Ping, Traceroute, port mirroring
– UDLD (TBD) and copper test
– User hierarchical management and password protection, HTTPS, SSH, Telnet
– 802.1X authentication
– AAA authentication including RADIUS, TACACS+
– Storm control
– Port isolation, port security, sticky MAC
– Filtering MAC address
– IP source guard, DoS attack prevention, ARP inspection
– DHCP Snooping
– Loop protection including BPDU protection, root protection(pending) and loopback protection(pending)
– Kensington Security Slot (Kensington Lock) support
– Desktop
– Wall-Mount
– Rack-Mount (rack-mounting kits included)
System LEDs:
– 1x tri-color LED for device tracking and status indication
PoE Powered LEDs:
– 8x yellow-color LEDs
Data Transferring LEDs:
– 10x green-color LEDs
Fanless operation
Operation temperature: 0°C to 45°C
Operation humidity: 10-90% RH(Non-condensing)
Storage temperature: -10°C to 60°C
Storage humidity: 5% to 95% RH(Non-condensing)
Unit dimensions (LxWxH): 330x176x44mm
Unit weight: 2.17Kg
Compliance: FCC, CE, RCM, IC, UKCA
3 Year Warranty

 PartnerNET Grandstream GWN7810 Series Enterprise L3 Managed Network Switches Datasheet

Package Contents:

1x GWN7811P 8-Port L3 Managed PoE Switch
1x 1.2m(10A) AC Cable
1x 25cm Ground Cable
4x Rubber Footpads
1x Power Cord Anti-Trip
8x Screws (KM 3*6)
1x Quick Installation Guide
1x Console Cable (Optional)
2x Extended Rack-Mounting Kits

Επιπλέον πληροφορίες

Βάρος 2.17 g
