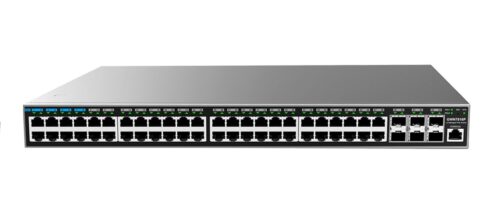

Grandstream GWN7816P 48-Port Gigabit Enterprise-Grade Layer 3 Managed Network PoE Switch with 6 SFP+ Ports


Availability: Σε απόθεμα SKU: GSTR-0288 Κατηγορίες: ,


GWN7816P ia a 48-port Gigabit, Enterprise-Grade, L3 managed network PoE switch that allows medium-to-large enterprises to build fully manageable, scalable, secure, high performance and smart business networks. Supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7816P provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points & other PoE endpoints. Also can be managed in several ways, including the local Web user interface of the switch, and CLI, the command-line interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With an advanced set of features, comprehensive security protection, and flexible management options, Grandstream GWN7816P is ideal for enterepsies and medium-to-large businesses who require high-performance networks with maximum capacity and control.


48 Gigabit Ethernet PoE ports & 6 Gigabit SFP+ ports
Smart power control to support dynamic PoE/PoE+, PoE++ power allocation per port
Supports deployment in IPv6 & IPv4 networks
Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control & more
ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch
GWN. Cloud, GWN Manager & CLI management support
Built-in QoS allows for prioritization of network traffic
Supports stacking for easy management on one interface while creating redundant backup between multiple devices

Key Features & Benefits:

Network Protocol: IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
48 Gigabit Ethernet PoE Ports
Maximum Output Power Per PoE Port: Ports 1 to 8 support 60W PoE++, Ports 9 to 48 support 30W PoE output
PoE Standards: IEEE 802.3af/at/bt
Max. PoE Power Budjet: 740W (with 1 PSU)
6 SFP+ Ports (≤ 5m DAC cable support)
Maximum amount of supported SFP modules: 6x SM-10G, 6x MM-10G, 3x RJ45-10G
Includes one 920W PSU by default, support for one Hot swap PSU (optional, sold separately)
1x Console Port
1x Reset Pinhole
Forwarding Mode: Store-and-forward
Total non-blocking throughput 108Gbps
Switching Capability 216Gbps
Forwarding Rate 160.704Mpps
Packet Buffer 16Mb
Network Latency < 4μs
1x tri-color LED for device tracking and status indication
2x bi-color LEDs for per power supply PSU1/2
54x green-color LEDs for data transferring
48x yellow-color LEDs for PoE powered ports
Cooling: 4 Fans
Desktop, or Rail-Mount (rack-mounting kits included)
Unit Dimensions (LxWxH): 440 x 300 x 44mm
Unit Weight: 6Kg
Compliance: FCC, CE, RCM, IC, UKCA
3 Year Warranty


16K MAC addresses, including static, dynamic and filtering MAC address
4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
VLAN virtual interface
GVRP (pending)
27 link aggregation
Spanning tree, 64 instances for STP/RTSP/MSTP/PVST(+)


Static routing
Dynamic routing, including RIP, RIPng, OSPF and OSPFv3
Policy routing (pending)


IGMP Snooping with IGMPv2 and IGMPv3
MLD Snooping with MLDv1 and MLDv2
MVR (pending)


Port priority
Priority mapping
Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
Traffic shaping
Rate limit
4K ACL for Ethernet, IPv4 and IPv6


DHCP server
DHCP relay
DHCP Option 82, 60, 160 and 43


CPU and memory monitoring
Fault detection and alarm for power supply and fan
Backup and restore, syslog
Diagnostics including Ping, Traceroute, port mirroring, UDLD (pending) & copper test


User hierarchical management and password protection, HTTPS, SSH, Telnet
802.1X authentication
AAA authentication including RADIUS, TACACS+
Storm control
Port isolation, port security, sticky MAC
Filtering MAC address
IP source guard, DoS attack prevention, ARP inspection
DHCP Snooping
Loop protection including BPDU protection
Root protection (pending) and loopback protection (pending)
Kensington Security Slot (Kensington Lock) support


Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing)

Package Contents:

GWN7816P Enterprise Gigabit L3 Managed Network PoE Switch
1x 1.2m AC Cable
1x 25cm Ground Cable
4x Rubber Footpads
2x Front Rack-Mounting Kits
2x Rear Rack-Mounting Kits
2x Rear Slideways
16x Screws(KM 3*6)
1x Quick Installation Guide
